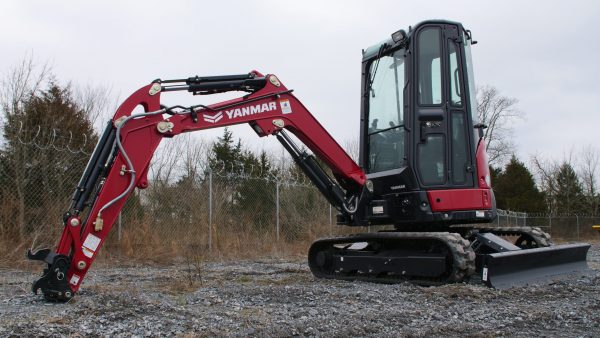

YANMAR Mini Excavator ViO25-6B

Contact us for price

Stock status: Call Store for Availability

When tight residential or inner-city jobsites call for big time performance, it’s time to call in the work anywhere toughness of the Vi025-6B. This 2.5-ton category mini-excavator is sized right to fit through narrow openings, while its zero tail swing design gives it the nimble capability to get busy in nearly any cramped space. Throttle up the reliable Yanmar 3-cylinder diesel engine and put more than 20-horses to work while digging to depths up to 10 feet, all while enjoying the fuel efficiency and quiet of Tier 4 Final performance. That performance is paired with a comfortable operator station for the ability to work longer days with less fatigue.

Call Us Now

Specs

Engine

This div for css purpose only
Model
Tier 4 Final 3TNV80F-SXNBV
Tier 4 Final 3TNV80F-SXNBV

This div for css purpose only
Rated Output
20.4 HP / 2,500 RPM
15.2 kW / 2,500 rpm

This div for css purpose only
Type
Water-cooled 4-cylinder diesel
Water-cooled 4-cylinder diesel

Operating Weight

Rubber Track (Canopy)
5,908 lbs
2.68 t

Steel Track (Canopy)
6,151 lbs
2.79 t

Rubber Track (Cabin)
6,140 lbs
2.82 t

Steel Track (Cabin)
6,383 lbs
2.93 t

Performance

Max Digging Force, Bucket / Arm
4,079 / 2,624 lbs
23.1* / 12.6* kN (*without quick coupler)

Traveling Speed, High / Low
2.8 / 1.7 MPH
4.5 / 2.8 km/h

Swing Speed
10 RPM
10 RPM

Boom Swing Angle, (L / R)
46 / 74
46 / 74

Ground Contact Pressure (Rubber Track)

Canopy
4.4 PSI
30.2 kPa

Cabin
4.5 PSI
31.7 kPa

Hydraulic System

Pump Capacity
Double variable displacement pump: 2*7.9 GPM

Gear Pump: 5.6 GPM

30.0 (L / min) x2 {Variable displacement pump} 21.3 (L/min) x 11.3 (L/min) x 1 {Gear pump}

Main Relief Set Pressure
2,987 x 2, 2,631 x 1 PSI
20.6 x 2, 18.1 x 1 MPa

Blade Dimensions

Width
4’11”
1,500 mm

Stroke, Raise / Lower from G.L.
1′ / 1′ 2″
355mm / 340mm

Fuel Tank

This div for css purpose only
Capacity
8 Gals
30.7 L
