YANMAR Wheel Loader V4-7

Contact us for price

Stock status: Call Store for Availability

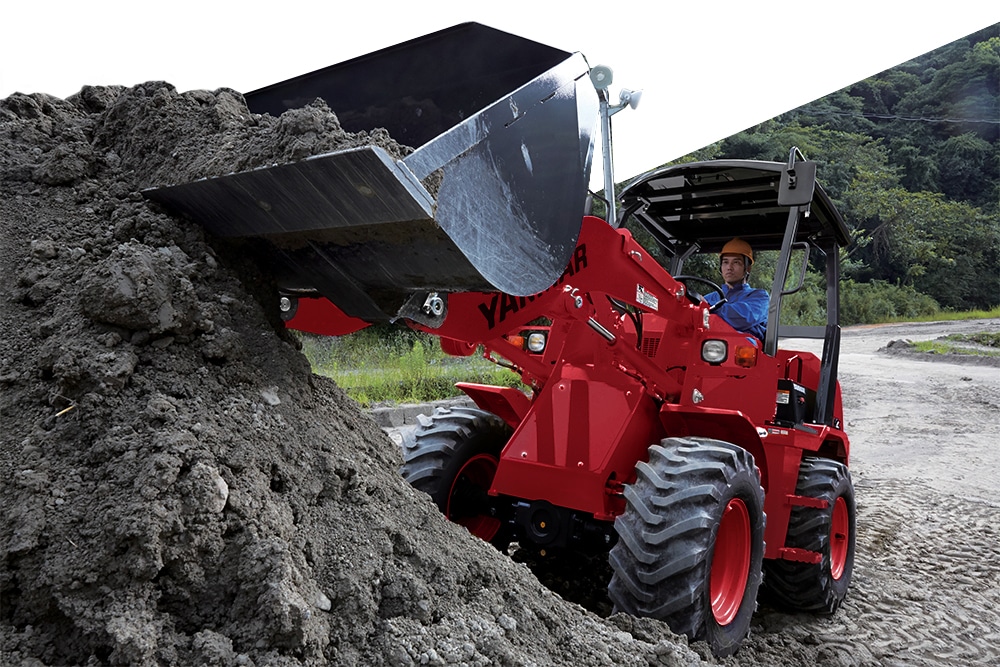

Our most compact articulating wheel loader might be small in size, but it’s big on capability. Whether you’re moving rocks, dirt, mulch, manure, salt, fertilizer, or any other material, our legendary Yanmar diesel performance makes quick work of any task. A fully automatic accelerator mode eliminates repetitive steps and rear axle oscillation allows you to cover uneven terrain with greater stability, resulting in less spill, even with a fully loaded bucket. Of course, the V4-7 allows for easy maintenance access, so you keep the load moving and your bottom line growing.

Call Us Now

Specs

Engine

Model
4TNV88C-NKAH
4TNV88C-NKAH
Output
39 HP / 2,500 rpm
29.1 kw / 2,500 rpm
Displacement
133.6 in³
2.189 cm³
Type
Water-cooled 4-cylinder diesel
Water-cooled 4-cylinder diesel

Performance

This div for css purpose only
Standard Bucket Capacity
0.65 yd³
0.5 m³
This div for css purpose only
Operating Load
2,535 lbs
11.2 kN
This div for css purpose only
Lifting Capacity at Low End
7,451 lbs
33.1 kN
This div for css purpose only
Tipping Load – Straight
6,070 lbs
27 kN
This div for css purpose only
Tipping Load, Articulated
5,058 lbs
22.5 kN
This div for css purpose only
Breakout Force
6,085 lbs
27.1 kN
This div for css purpose only
Dumping Clearance
7’11”
2,420 mm
This div for css purpose only
Traveling Speed
11.8 mph
19.0 km/h
This div for css purpose only
Oscillation Angle
±8 deg
±8 deg
This div for css purpose only
Minimum Turning Radius
12’6″
3,810 mm
This div for css purpose only
Min. Ground Clearance
1’3″
370 mm

PTO

Front Hyd. PTO
3,000 PSI
20590 kPa
Front Hyd. PTO
14.8 GPM
56.0 L/min

Steering

Articulate Angle
40.5 deg
40.5 deg
Type
Center-Pivot Frame Articulation w/Full Hyd. Power
Center-Pivot Frame Articulation w/Full Hyd. Power

Transmission

This div for css purpose only
Type
Automatic Hydrostatic
Automatic Hydrostatic

Drives

This div for css purpose only
Type
4-Wheel Drive
4-Wheel Drive

Brakes

This div for css purpose only
Type
Fully Enclosed, Mechanical, Wet, Multiple Disc
Fully Enclosed, Mechanical, Wet, Multiple Disc

Operating Weight

Canopy
7,848 lbs
3,560 kg
Cabin
8,422 lbs
3,820 kg

Transport Dimensions

This div for css purpose only
L x W x H
14’6″ x 5’7″ x 8’5″
4,425mm x 1,690mm x 2,555mm
